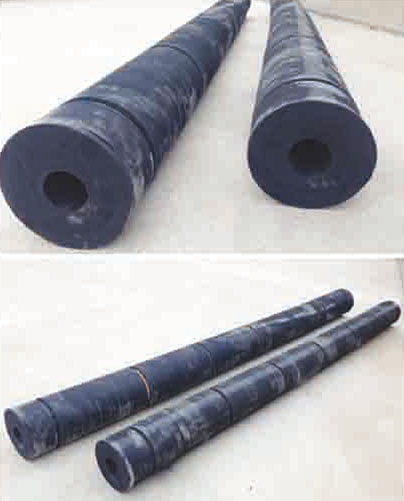

TUGBOAT RUBBER FENDER
Product introduction:
Tugboat fenders, as its name implies, are generally wound around tugboats to counterpart the impact force between two tugboats or between tugboat and docks. They effectively protect boats and docks form damages during berthing.
Feature:
1. Strong and durable structure.
2. With grooves for chains and straps for easier and firmer attachments.
3. Round hollow chamber for easier installation.
4. Suitable to be fasten to the sides, bow and stern of tugboat.
5.Ideal for protecting tugboats, workboats, icebreakers and various types of vessel
6. Wide range of sizes and designs.

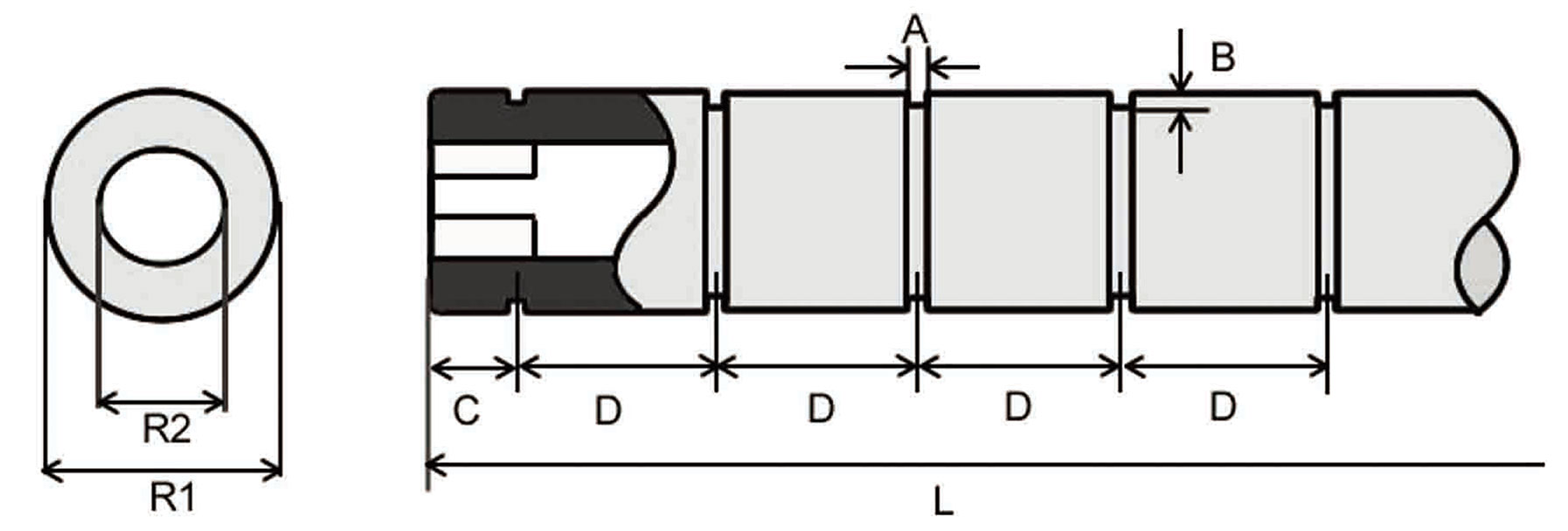

Specification :
|
TUG BOAT RUBBER FENDER |
||||||
|
Type (mm) |
OD R1 |
ID R2 |
A |
B |
C |
D |
|
300 x 150 x L |
300 |
150 |
50 |
25 |
100 |
600-900 |
|
350 x 175 x L |
350 |
175 |
50 |
35 |
200 |
600-900 |
|
400 x 200 x L |
400 |
200 |
50 |
35 |
200 |
600-900 |
|
500 x 250 x L |
500 |
250 |
60 |
40 |
250 |
600-900 |
|
600 x 300 x L |
600 |
300 |
60 |
35 |
250 |
600-900 |
|
700 x 350 x L |
700 |
350 |
60 |
50 |
300 |
600-900 |
|
800 x 400 x L |
800 |
400 |
70 |
50 |
400 |
600-900 |
|
900 x 450 x L |
900 |
450 |
70 |
50 |
500 |
600-900 |
|
NOTE: other size can be produced follow clients’ need |
||||||
