ROLLER FENDERS


Product introduction:

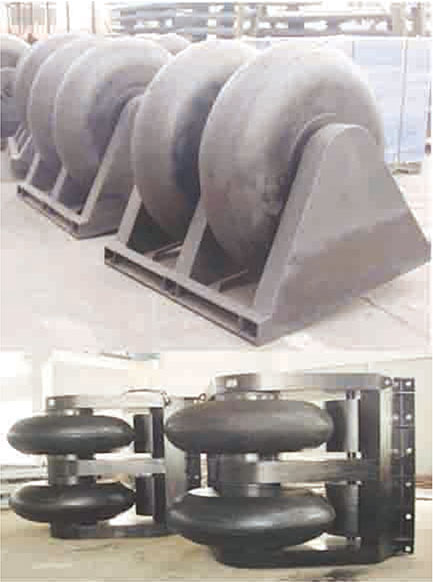

Roller rubber fenders feature wheels fixed to a metal frame to allow rotations along with movements of berthing vessels to counteract the impact force, control berthing speed and prevent hull damage. Meanwhile, roller rubber fenders have a great combination of excellent energy absorption and low reaction force.

Feature:

    1. Low reaction force and high energy absorption

    2. The fender performance doesn’t form the influence of ship inclining and berthing

    3. Applicable for dry docks and other restricted channels etc

Specification :

Specification

D1

D2

D3

NOTE

A

B

C

D

L1

H

Weight

L2

Weight

L3

Weight

Other specification can be

manufactured upon users’ requests.

600x200

600

200

695

320

420

620

128

770

246

1120

365

750x250

750

250

870

400

510

775

248

935

502

1360

736

900x300

900

300

1040

480

610

930

466

1120

877

1630

1292

1200x400

1200

400

1380

640

820

1240

1046

1500

2040

2180

3007

1500x500

1500

500

1740

800

1010

1550

2011

1850

3915

2690

5786

1800x600

1800

600

2080

960

1210

1860

3443

2215

6701

3220

9892

2100x700

2100

700

2440

1155

1410

2205

5612

2590

10927

3770

15898

2400x800

2400

800

2770

1280

1610

2480

8116

2950

15705

4290

23300

2700x900

2700

900

3130

1440

1810

2780

11595

--

--

--

--

3000x1000

3000

1000

3480

1600

2010

3100

16011

--

--

--

--

Performance

x B (mm)Spec.

Max.

Deform.

(mm)

D1

D2

D3

Tolerance(10%)

RKN

Reaction

force

E(KN-M)Energy

 absorption

RKN

Reaction

force

E(KN-M)Energy

 absorption

RKN

Reaction

force

E(KN-M)Energy

absorption

±10

600x200

125

68.3

2

137

5

206

7

750x750

159

107

5

214

9.2

321

14.3

930x300

185

154

8

308

16.3

462

24.5

1200x400

260

274

19.4

550

39.8

830

59.2

1500x500

325

427

38.8

860

77.5

1289

115

1800x600

390

620

66.3

1239

133

1860

200

2100x700

455

840

104

1680

208

2519

312

2400x800

510

1130

143

2199

286

3299

428

2700x900

578

1389

224

2779

448

4169

672

3000x1000

640

1710

308

3419

616

5128

924
