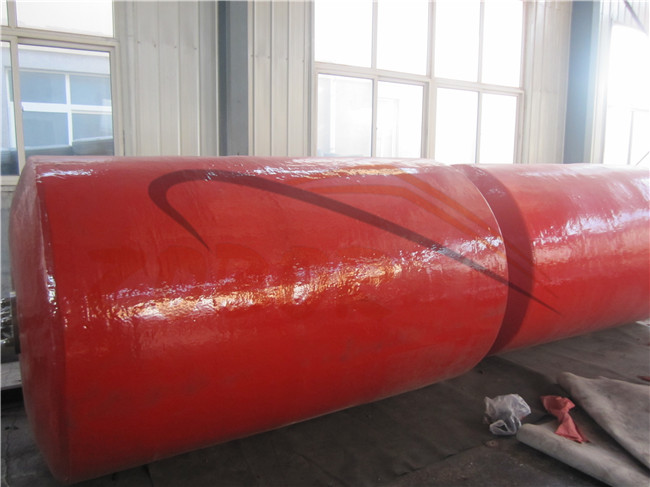

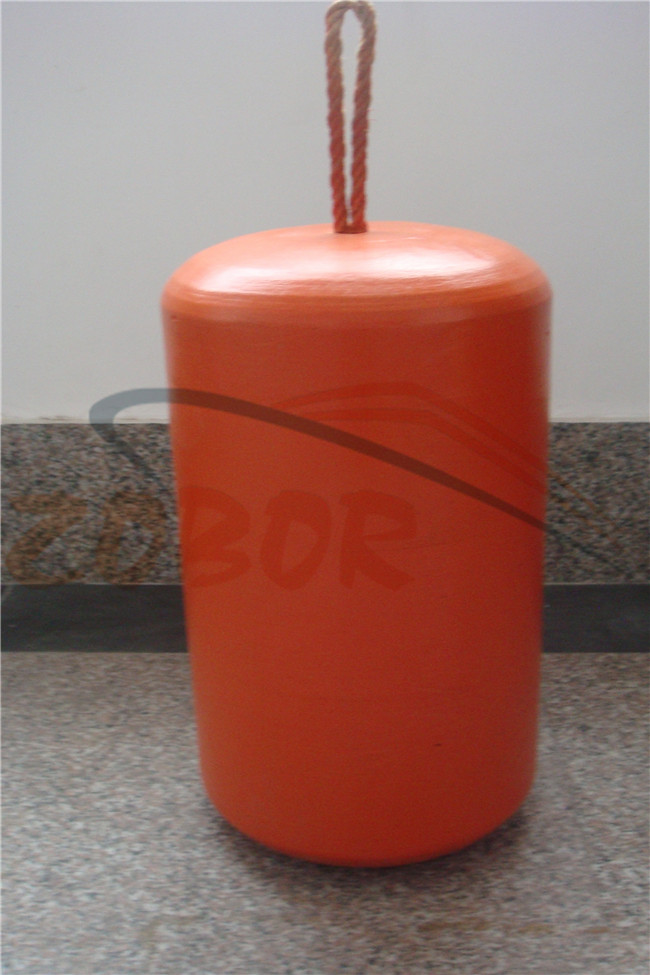

ROPE TYPE FOAM FENDER
Product introduction:
Advantage:
1. Can be floating on the water, not being influenced by the tide.

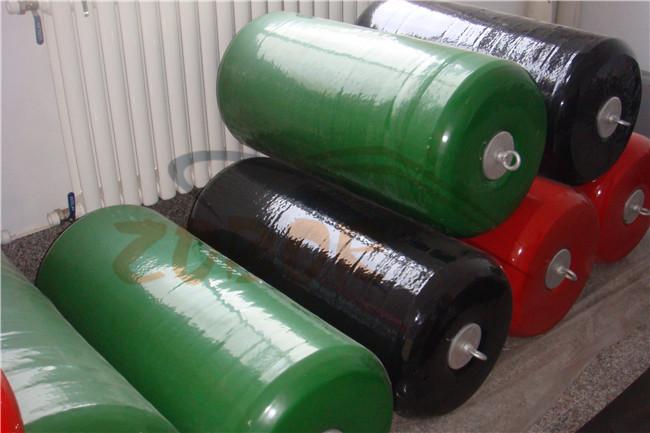

2. Color can be chosen, whatever the clients like.
3. Comparing with the pneumatic rubber fender, it doesn’t need to be inflated, not afraid of scratch, stab, rub etc.
4. Solid, in light weight, easy installation.
5. The energy absorption is high, reaction force performance is good.
Specification:
Polyurethane floating fenders specification and performance table
Specification |
Compression 60% |
||
Diameter/ mm |
Length/mm |
R/ KN |
GEA/ KJ |
300 |
500 |
38 |
1.8 |
400 |
800 |
56 |
2.6 |
500 |
1000 |
72 |
26 |
1000 |
1500 |
205 |
49 |
1000 |
2000 |
274 |
64 |
1200 |
2000 |
337 |
93 |
1500 |
3000 |
624 |
216 |
2000 |
3500 |
990 |
456 |
2500 |
4000 |
1680 |
918 |
3000 |
6000 |
2460 |
1695 |
NOTE: other non-series specification can be made according to clients’ request.
