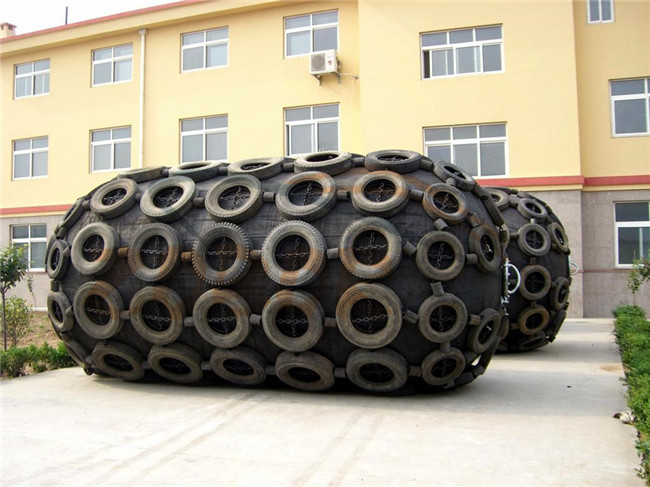

Chain and Tyre Net Pneumatic Fender


Product introduction:

Pneumatic Rubber Fender is the advanced anti-collision device for marine application in the world. Pneumatic rubber Fender also known as floating rubber fender or Yokohama type rubber fender, it is often installed on the terminal or ship, which aims to absorb or reduce the collision energy between ship to ship and ship to dock. Chain and tyre net pneumatic fender is one type of pneumatic rubber fender.  This kind of product can protect the ship or dock from the damage of collision. With inner compressed air, it can float on the water and widely used as protecting medium equipment. “XINCHENG” Pneumatic rubber fenders are produced in strict accordance with the ISO17357:2002 international quality standard, our products have exported to all over the world.

Features:

    1. Large compression deformation, low reaction force, high energy absorption

    2.  Good floating performance, can meet the needs of the water level change

    3. With compressed air as medium, the collision energy consumption by compressed    air power

    4. Easy installation and long service life

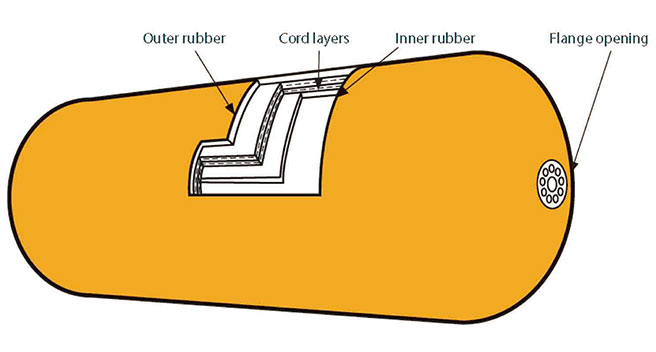

Structure:

1.Outer Rubber

    Cover outside on the ball of rubber layer, which is used to protect skeleton material and inner rubber ball from damage of external force, the main features: high strength, wear resistance, ageing resistance and tear resistance.

2. Synthetic cord reinforced rubber layer

    Reinforced cord rubber layer is composed of winding Synthetic cord layer, It is mainly used for maintain the internal air pressure, which has

good elasticity, no deformation and high power etc.

3. Inner Rubber

    On the ball inside the rubber layer, which is used to prevent air leakage and control the ball pressure.

4. End Flange

    The metal parts at both ends of fender, which can be fitted with charging valve and safety valve.

Specification:



SIZE



D×L

Initial Internal Pressure 0.05Mpa

Initial Internal Pressure 0.08Mpa

Guaranteed Energy

 Absorption

Reaction

 Force

Hull Pressure

 At GEA (PR)

Guaranteed Energy

Absorption

Reaction force

Hull Pressure

 At GEA (PR)

(mm)

(KN/M)

(KN)

(Kpa)

(KN/M)

(KN)

(Kpa)

0.5×1.0

6

64

132

8

85

174

0.6×1.0

8

74

126

11

98

166

0.7×1.5

17

137

135

24

180

177

1.0×1.5

32

182

122

45

239

160

1.0×2.0

45

257

132

63

338

174

1.2×2.0

63

297

126

88

390

166

1.35×2.5

102

427

130

142

561

170

1.5×3.0

153

579

132

214

761

174

1.7×3.0

191

639

128

267

840

168

2.0×3.5

308

875

128

430

1150

168

2.5×4.0

663

1381

137

925

1815

180

2.5×5.5

943

2019

148

1317

2653

195

3.0×5.0

965

1815

148

1341

2359

198

3.0×6.0

1184

2243

152

1646

2916

203

3.3×4.5

1175

1884

130

1640

2476

171

3.3×6.5

1814

3015

146

2532

3961

191

Note: Other size can be produced follow client’s needs
