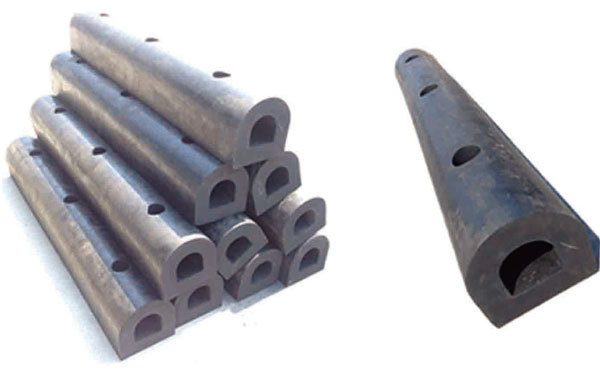

D TYPE RUBBER FENDER


Product introduction:

D type rubber fenders, as the most common rubber bumper mounted on ships or docks, boast higher energy absorption than cylindrical fender and reasonable reaction force. D fenders are extruded into small D-shaped structures with punched holes for easy installation and replacements. Normally, they are ideal for following applications: Tugboats, workboats, fishing boats etc.

Feature:

    1.Reasonable reaction force and high energy absorption;

    2.Easy to install and maintain or replace;

    3.Especially suitable for frame type wharf and shore protection of the wharf.It can also be used in protection of vessel.

Specification:

Size (mm)

Specification

H

B

L

Holes

Q

c

h

D

d

D150×150×1000

150

150

1000

3

350

150

25

40

24

D200×200×1000

200

200

1000

3

350

150

35

55

30

D200×200×3000

200

200

3000

8

400

100

35

55

30

D250×250×1000

250

250

1000

3

350

150

35

60

30

D250×250×3000

250

250

3000

8

400

100

35

60

30

D300×300×1000

300

300

1000

3

350

150

40

65

32

D300×300×3000

300

300

3000

8

400

100

40

65

32

D300×360×1000

300

360

1000

3

350

150

40

65

32

D300×360×3000

300

360

3000

8

400

100

40

65

40

D400×400×1000

400

400

1000

3

400

150

55

80

32

D400×400×3000

400

400

3000

8

400

100

55

80

40

D500×500×1000

500

500

1000

3

350

150

90

97

45

D500×500×3000

500

500

3000

8

400

100

90

97

45

NOTE: Different sizes of D Type rubber fender can be made follow customer’s request.

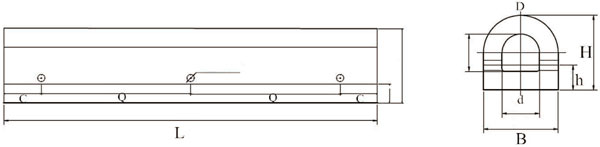

Structure:



Performance:

Type(mm)

Specification

 Deflection(%)

Reaction Force(KN)

Energy Absorption(KN-M)

D150×150×1000

50

115

3.2

D200×200×1000

50

211

8.6

D250×250×1000

50

252

9.2

D300×300×1000

50

300

12

D300×360×1000

50

330

14.28

D400×400×1000

50

390

20

D500×500×1000

50

460

32

NOTE: Performance tolerance is±10%

Accessories of Fenders:

No.

 Name

Material

1

Bolt

Q235, Q235 hot galvanized 0Cr17Ni12M02

1Cr13(2Cr13)1Cr18Ni9Ti,SUS304,SUS316

2

 Washer

Q235

3

 Pre-built-in nut

Q235,Q235 hot galvanized 1Cr13(2Cr13) 1Cr18Ni9Ti

4

 Foot rod

Q235

5

 Foot board

Q235
