SUPER ARCH RUBBER FENDER


Product introduction:

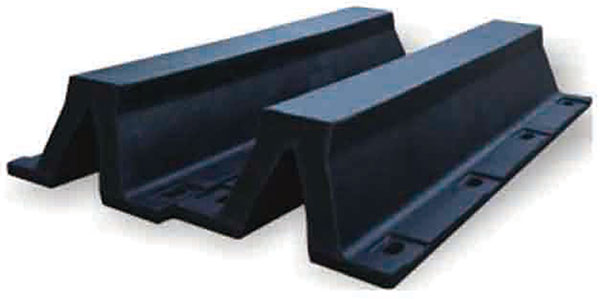

Super Arch Rubber Fenders, sometimes called as V type fenders, can provide trouble-free service for protecting vessels and docks from damages even under the most severe conditions. Mounted to the docks horizontally or vertically using bolts, the fenders can absorb impact energy and dissipate stress evenly with improved performance comparing with cylindrical fenders.



Feature:

    1.High energy absorption and low reaction force:

    2.Reasonable structure and long usage life:

    3.Convenient and deep-set installation.

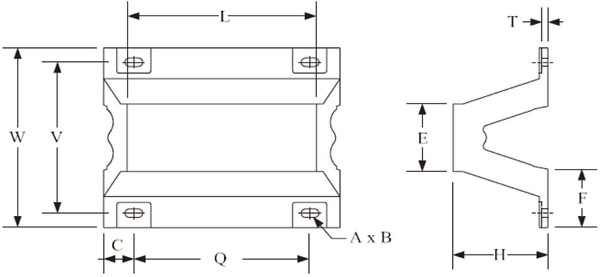

Specification:







Specification

Dimension(mm)

H

L

C

Q

n

E

V

W

F

T

A

B

V-150×1000

150

1000

110

855

2

98

240

300

96

22.5

50

25

V-150×1500

150

1500

112.5

675

3

98

240

300

96

22.5

50

25

V-150×2000

150

2000

215

620

4

98

240

300

96

22.5

50

25

V-150×2500

150

2500

220

785

4

98

240

300

96

22.5

50

25

V-150×3000

150

3000

215

715

5

98

240

300

96

22.5

50

25

V-150×3500

150

3500

220

671

6

98

240

300

96

22.5

50

25

V-200×1000

200

1000

120

860

1

145

320

400

128

30

58

29

V-200×1500

200

1500

120

680

2

145

320

400

128

30

58

29

V-200×2000

200

2000

120

62

3

145

320

400

128

30

58

29

V-200×2500

200

2500

122.5

785

3

145

320

400

128

30

58

29

V-200×3000

200

3000

120

715

4

145

320

400

128

30

58

29

V-200×3500

200

3500

120

672

5

145

320

400

128

30

58

29

V-250×1000

250

1000

130

865

1

164

410

500

160

30

64

32

V-250×1500

250

1500

132.5

680

2

164

410

500

160

30

64

32

V-250×2000

250

2000

132.5

620

3

164

410

500

160

30

64

32

V-250×2500

250

2500

127.5

790

3

164

410

500

160

30

64

32

V-250×3000

250

3000

132.5

715

4

164

410

500

160

30

64

32

V-250×3500

250

3500

130

673

5

164

410

500

160

30

64

32

V-300×1000

300

1000

140

870

1

225

490

600

195

33

70

35

V-300×1500

300

1500

140

685

2

225

490

600

195

33

70

35

V-300×2000

300

2000

137.5

625

3

225

490

600

195

33

70

35

V-300×2500

300

2500

140

790

3

225

490

600

195

33

70

35

V-300×3000

300

3000

145

715

4

225

490

600

195

33

70

35

V-300×3500

300

3500

140

674

5

225

490

600

195

33

70

35

V-400×1000

400

1000

150

900

1

300

670

800

260

4

82

41

V-400×1500

400

1500

150

700

2

300

670

800

260

4

82

41

V-400×2000

400

2000

147.5

635

3

300

670

800

260

4

82

41

V-400×2500

400

2500

150

800

3

300

670

800

260

4

82

41

V-400×3000

400

3000

150

725

4

300

670

800

260

4

82

41

V-400×3500

400

3500

150

680

5

300

670

800

260

4

82

41

V-500×1000

500

1000

160

930

1

375

840

1000

325

45

94

47

V-500×1500

500

1500

160

715

2

375

840

1000

325

45

94

47

V-500×2000

500

2000

157.5

645

3

375

840

1000

325

45

94

47

V-500×2500

500

2500

160

810

3

375

840

1000

325

45

94

47

V-500×3000

500

3000

165

730

4

375

840

1000

325

45

94

47

V-500×3500

500

3500

160

686

5

375

840

1000

325

45

94

47

V-600×1000

600

1000

170

960

1

450

1010

1200

390

54

100

50

V-600×1500

600

1500

170

730

2

450

1010

1200

390

54

100

50

V-600×2000

600

2000

167.5

655

3

450

1010

1200

390

54

100

50

V-600×2500

600

2500

170

820

3

450

1010

1200

390

54

100

50

V-600×3000

600

3000

170

740

4

450

1010

1200

390

54

100

50

V-600×3500

600

3500

170

692

5

450

1010

1200

390

54

100

50

V-800×1000

800

1000

180

1040

1

600

1340

1600

520

72

136

68

V-800×1500

800

1500

180

770

2

600

1340

1600

520

72

136

68

V-800×2000

800

2000

180

680

3

600

1340

1600

520

72

136

68

V-800×2500

800

2500

182.5

845

3

600

1340

1600

520

72

136

68

V-800×3000

800

3000

180

760

4

600

1340

1600

520

72

136

68

V-1000×1000

1000

1000

200

1100

1

750

1680

2000

650

90

136

68

V-1000×1500

1000

1500

200

800

2

750

1680

2000

650

90

136

68

V-1000×2000

1000

2000

200

700

3

750

1680

2000

650

90

136

68

NOTE: Other sizes can be available follow customers’ request.
