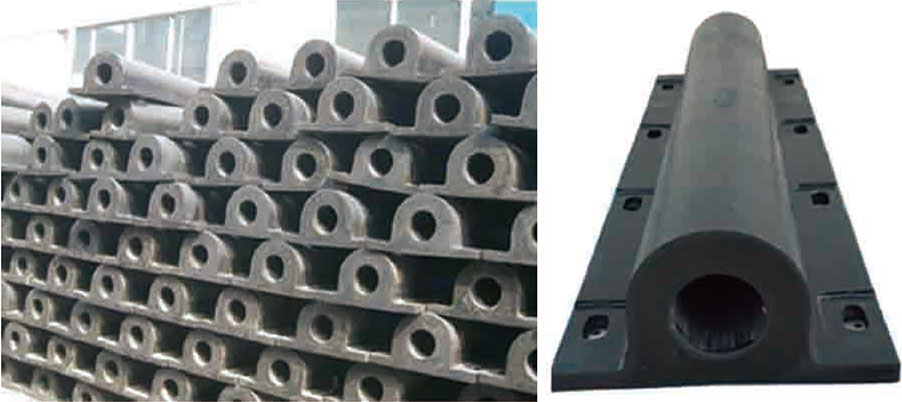

WING (DO TYPE)RUBBER FENDER
Product introduction:
Wing Rubber Fenders are improved D fenders with two wings. They are compression moulded and generally used on tugs, boats, ships, quays, piers and warehouses, etc. The wing design extends the service life of wing fenders as traditional D fenders are is anchored in the middle which make them easy to break away.
Feature:
1. DO type rubber fender is a new type fender on the basis of D type fender innovation, DO type fender enlarge fender bottom width and pre-built-in steel plate mount, it can be fixed with double bolts, the strength of installation and utility life is much more improved than D type fender.
2. Particularly applicable for framework quay, in addition it can be layouted and used with other rubber fender.

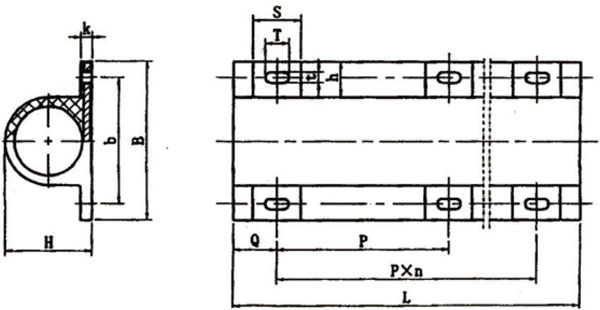

Specification：
|
Specification |
Sizes |
|||||||||||
|
H |
B |
b |
L |
Q |
p |
S |
h |
T |
t |
k |
n |
|
|
DO 280 ×540 × 1000 |
280 |
540 |
430 |
1000 |
150 |
700 |
165 |
120 |
82 |
41 |
40 |
2 |
|
DO 280 ×540 × 1500 |
280 |
540 |
430 |
1500 |
150 |
600 |
165 |
120 |
82 |
41 |
40 |
3 |
|
DO 280 ×540 × 2000 |
280 |
540 |
430 |
2000 |
145 |
570 |
165 |
120 |
82 |
41 |
40 |
4 |
|
DO 280 ×540 × 2500 |
280 |
540 |
430 |
2500 |
150 |
550 |
165 |
120 |
82 |
41 |
40 |
5 |
|
DO 280 ×600 × 3000 |
280 |
540 |
430 |
3000 |
150 |
540 |
165 |
120 |
82 |
41 |
40 |
6 |
|
DO 300 ×600 × 1000 |
300 |
600 |
600 |
1000 |
150 |
700 |
165 |
120 |
82 |
41 |
40 |
2 |
|
DO 300 ×600 × 1500 |
300 |
600 |
600 |
1500 |
150 |
600 |
165 |
120 |
82 |
41 |
40 |
3 |
|
DO 300 ×600 × 2000 |
300 |
600 |
600 |
2000 |
145 |
570 |
165 |
120 |
82 |
41 |
40 |
4 |
|
DO 300 × 600 × 2500 |
300 |
600 |
600 |
2500 |
150 |
550 |
165 |
120 |
82 |
41 |
40 |
5 |
|
DO 300 × 600 × 3000 |
300 |
600 |
600 |
3000 |
150 |
540 |
165 |
120 |
82 |
41 |
40 |
6 |
NOTE： Other size of rubber fenders can be made follow customers’ request.
