Heavy lifting airbags


Product introduction:

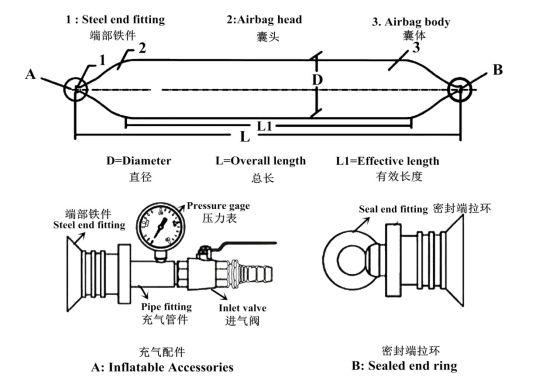

Structure:



                  “XINCHENG” heavy lifting Airbags’ structure is consists of the outer rubber layer synthetic cord reinforced rubber layers and inner rubber layer.

    Its shape characteristics: central body cylindrical + tapered on both ends.

    Cord layers: 4,5,6,7,8,9,10, layers

    Accessories: Pressure gage, Inlet valve, Pipe fitting and seal end ring.

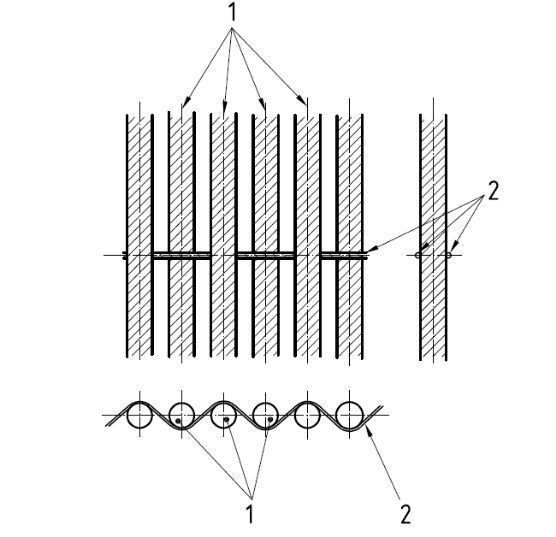

                     Synthetic-tyre-cord

1. Wrap threads that run vertically through the synthetic tyre-cord pattern.

2. Weft threads that run perpendicular to the warp threads.



Size & Specification:

Standard size of  heavy lifting airbags:

Diameter (D): 0.8m-2.0m

Effective length (EL): 6.0m-18m

Total Length (TL): 7m-20m

Cord layers: 4,5,6,7,8,9,10, layers

Diameter(m)

1.0

1.2

1.5

1.8

2.0

Medium Pressure

(4-5)

Test Pressure

0.14-0.16

0.12-0.14

0.10-0.12

0.08-0.10

0.07-0.09

Working Pressure

0.12-0.14

0.10-0.12

0.08-0.10

0.07-0.09

0.06-0.08

High Pressure

(6-8)

Test Pressure

0.22-0.26

0.20-0.24

0.15-0.20

0.13-0.16

0.12-0.15

Working Pressure

0.20-0.24

0.17-0.22

0.13-0.18

0.11-0.14

0.10-0.13

NOTE: Other size of airbags are also available follow customer’s request.
