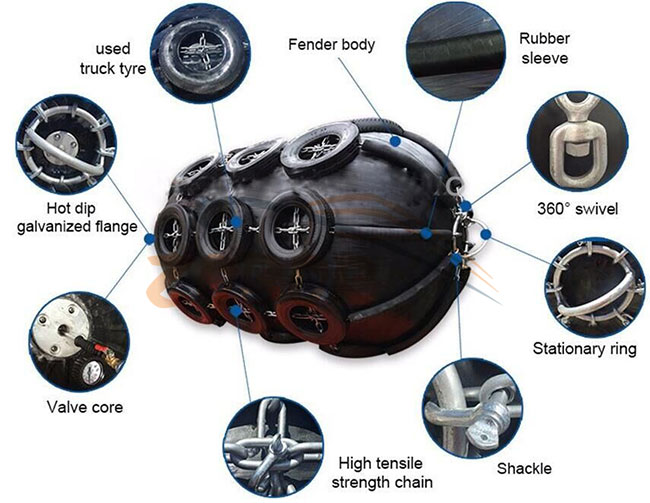

CHAIN AND TYRES NET FOAM FENDER


Product introduction:

Advantage:

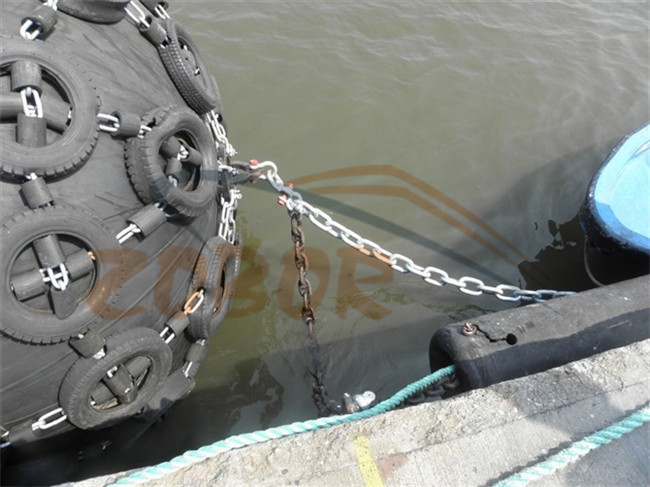

Chain and tyre net Foam Filled fender's biggest characteristics:  it has good floating performance, not influenced by tidal range; Bright color, can according to user requirements to provide various kinds of color of the fenders; Don't need to check when using, need not inflatable, not afraid of friction, resistance to sea water, acid and alkali, can use 10 to 15 years; Meanwhile, There is no risk of blasting, high safety. Floating Foam filled fender reaction force from small to large and high energy absorption. So it very suitable for open sea terminals, gravity (pier) port, especially for large tidal range docks and ship to ship, ship to dock.

Specification:

Polyurethane floating fenders specification and performance table

Specification

Compression 60%

Diameter/ mm

Length/mm

R/ KN

GEA/ KJ

300

500

38

1.8

400

800

56

2.6

500

1000

72

26

1000

1500

205

49

1000

2000

274

64

1200

2000

337

93

1500

3000

624

216

2000

3500

990

456

2500

4000

1680

918

3000

6000

2460

1695

NOTE: other non-series specification can be made according to clients’ request.
